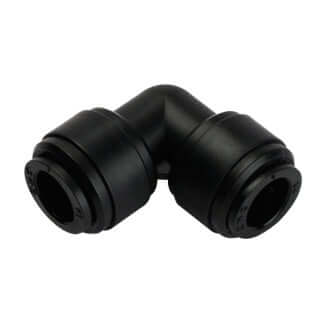

fluidFIT angle connector reduced (PM)

The fluidFIT Reduced Angle Connector (PM) – a precision connection element for professional fluid and gas systems. This component connects pipes and hoses at 90-degree angles, efficiently bridging different nominal diameters. This design minimizes pressure losses and optimizes flow characteristics in critical applications. Areas of application include beverage dispensing systems, water systems, compressed air networks, and gas supplies.

This component is characterized by precise workmanship and high compressive strength. Suitable for continuous operation under varying loads. A reliable solution for demanding installations in the catering, industrial, and technical sectors.

Working pressures and temperatures
Water
10 bar at 20°C
7 bar at 65°C intermittent hot water

Air
-20°C 10 bar
+23°C 10 bar
+65°C 7 Bar
